dash panel

link ecu mxs dash

Link Engine Management are proud to announce the latest addition to their wide range of ECU’s and accessories – the Link MXS Strada dash, powered by AiM technologies. This dash is the result of a partnership between the New Zealand based engine management company and world-renowned driver display manufacturer originating from Italy, AiM Technologies.

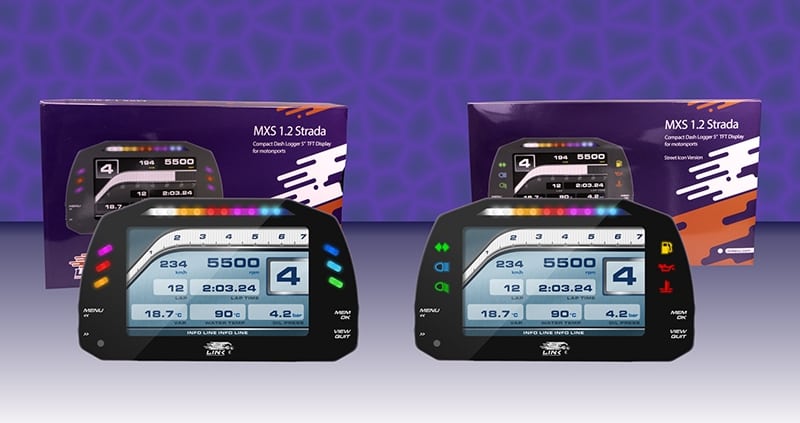

Link MXS Strada dash, powered by AiM Technologies

⚠️ New Product Alert! ⚠️Introducing the Link MXS Strada dash, powered by AiM Technologies. This dash features a full colour high-contrast TFT display, auto-adjustable brightness levels, fully customizable shift lights and multiple screen layouts pre-loaded. Best of it – it is preconfigured to connect with all Link ECU’s, instantly displaying information the ECU is reading about the engine on the 5” colour screen!We have two versions available – the Street Icon edition and the Race edition. To find out more, read here: https://www.linkecu.com/2018/09/12/link-engine-management-partners-with-aim-technologies/

Posted by Link ECU on Tuesday, 11 September 2018

The Link MXS Strada is preconfigured to connect with all Link ECU’s, instantly displaying information the ECU is reading about the engine on the 5” colour display. Featuring customisable shift lights, flexible alarms and a high contrast TFT screen, the dash is an essential enhancement in engine protection with its ability to transmit vital engine data to the driver’s cockpit. Visual quality is always optimal as the ambient light sensor auto-adjusts the brightness of the display.

The Link MXS dash is currently available in two versions, the Street Icon edition and the Standard edition. Both display a range of data such as speed, water temperature, oil pressure, lap times and much more.

The race edition features six fully customisable LED lights down the side which can be used as a wide range of alarms and warnings.

The street icon edition has street icons down the side, which include turn signals, high beam lights, oil pressure, water temperature warnings and an engine check light.

Both versions are extremely easy to use, with buttons on the side to navigate through a library of pre-set display styles depending on what information you want to see. These include RPM, speed, water temperature, oil pressure and much more.

The ten multi-coloured RGB shift lights along the top can be modified as you like, defining the RPM threshold for each single gear.

These layouts and shift lights can all be further customized through the AiM software or Link ECU software PC Link.

The dash can handle up to 8 fully configurable analogue inputs, 2 digital inputs and 1 digital output, with further expansion possible via the CAN connection, meaning many external sensors and inputs can be connected.

Available to buy in our shop now just click here >>>>  Link ECU MXS Strada Dash Panel Race Edition    Link ECU MXS Strada Dash Panel Street Edition
